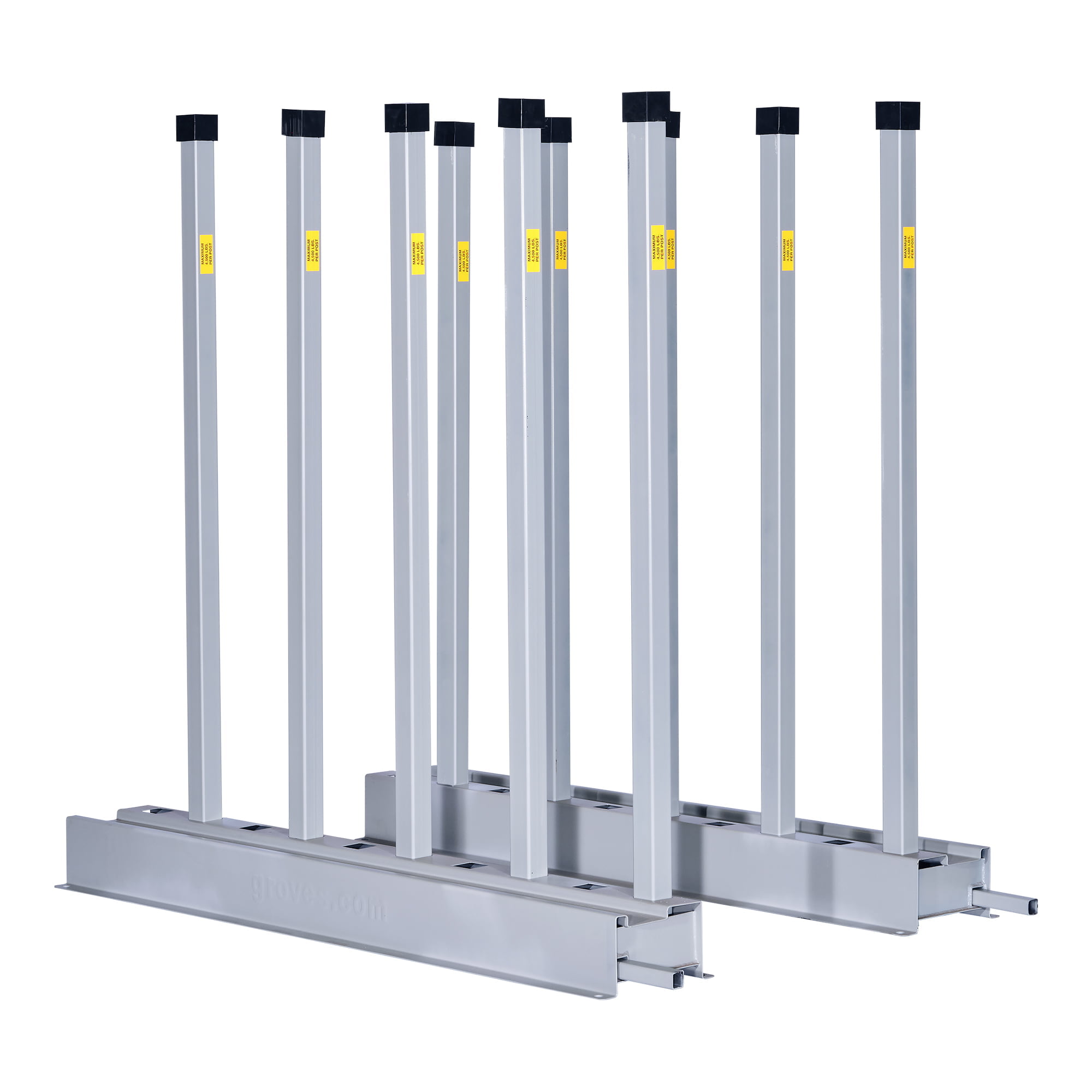

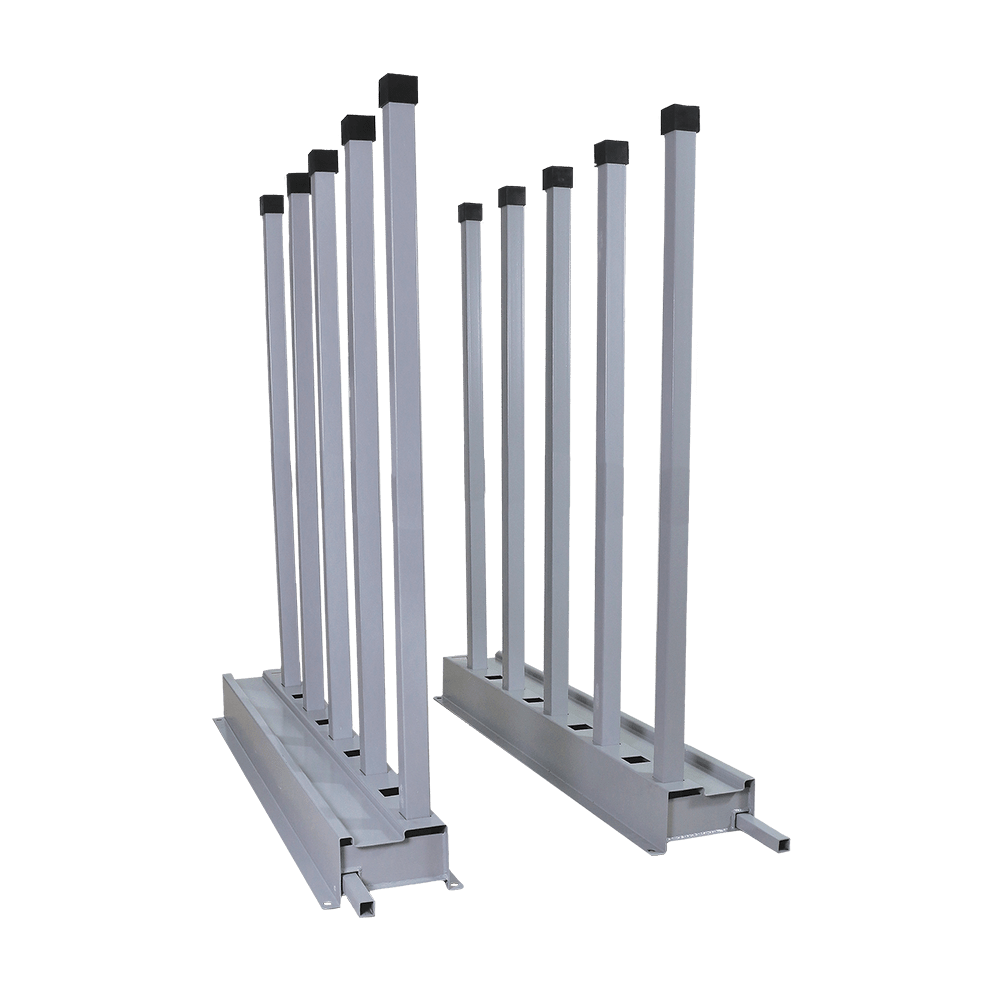

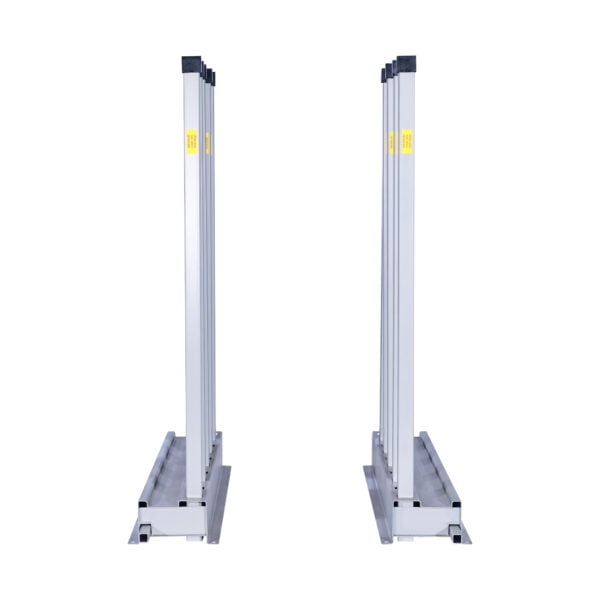

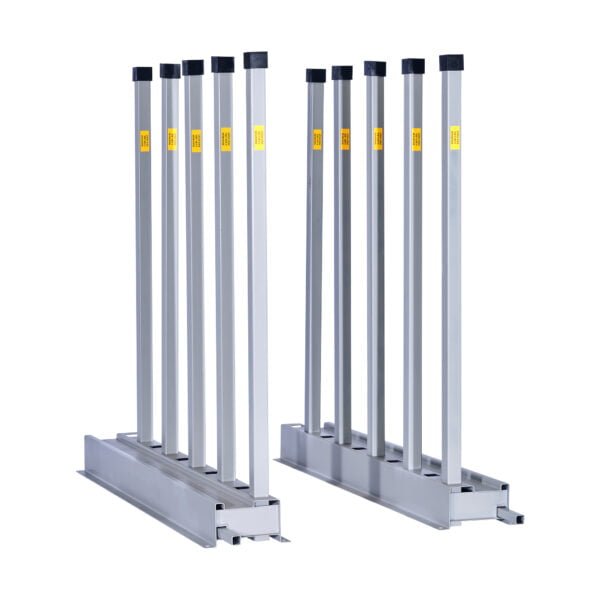

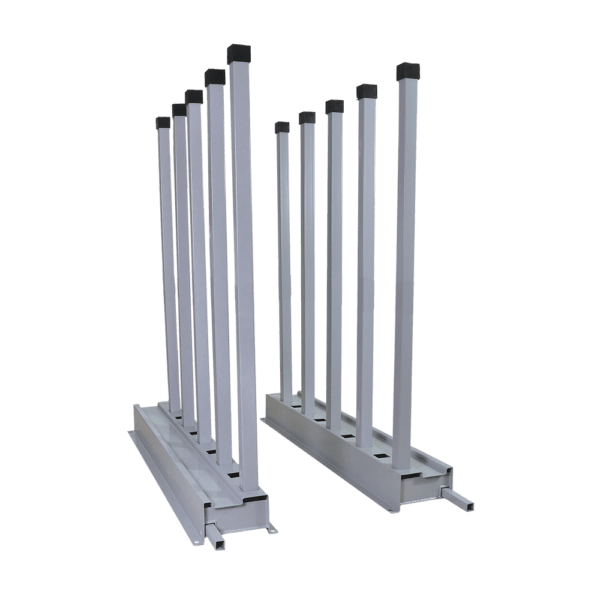

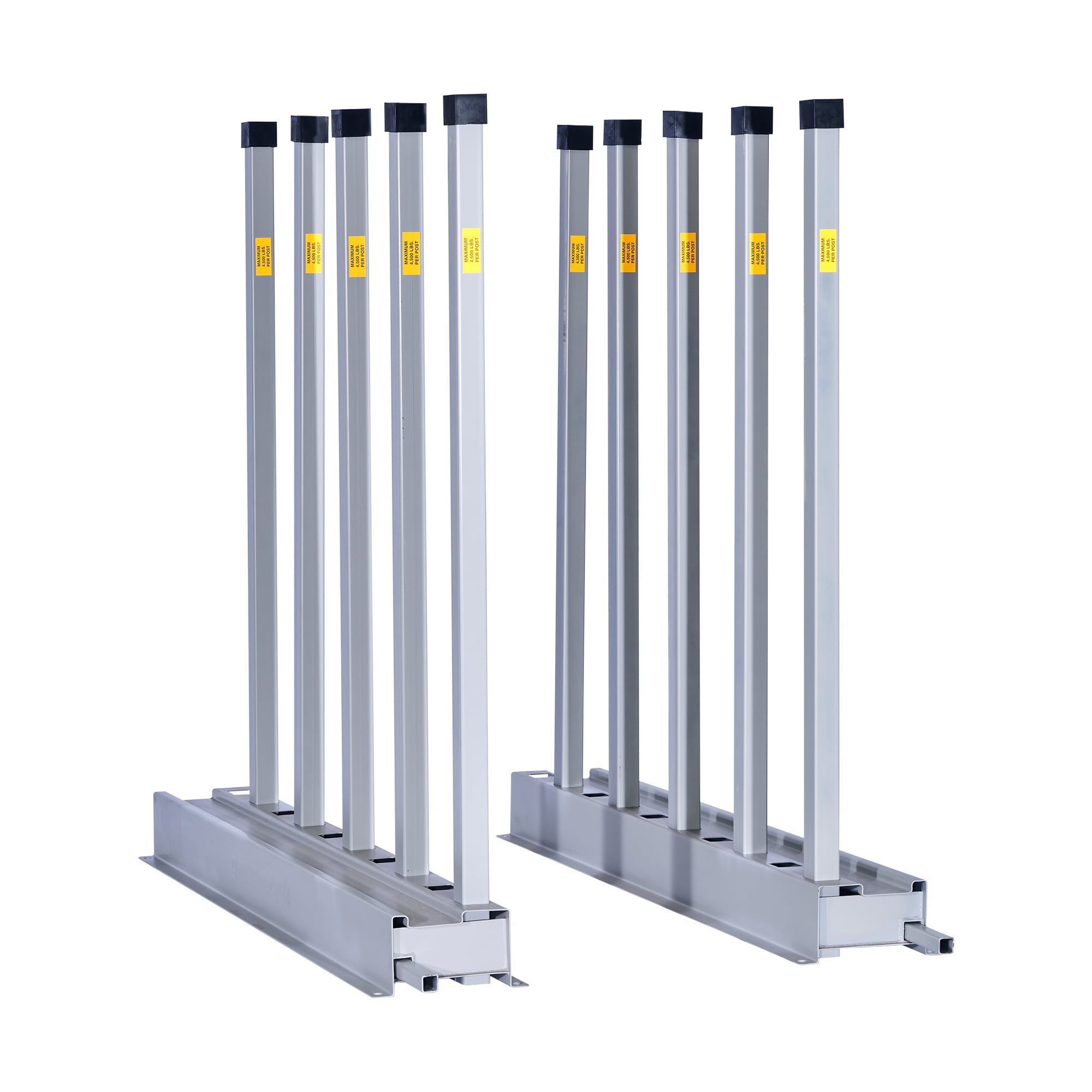

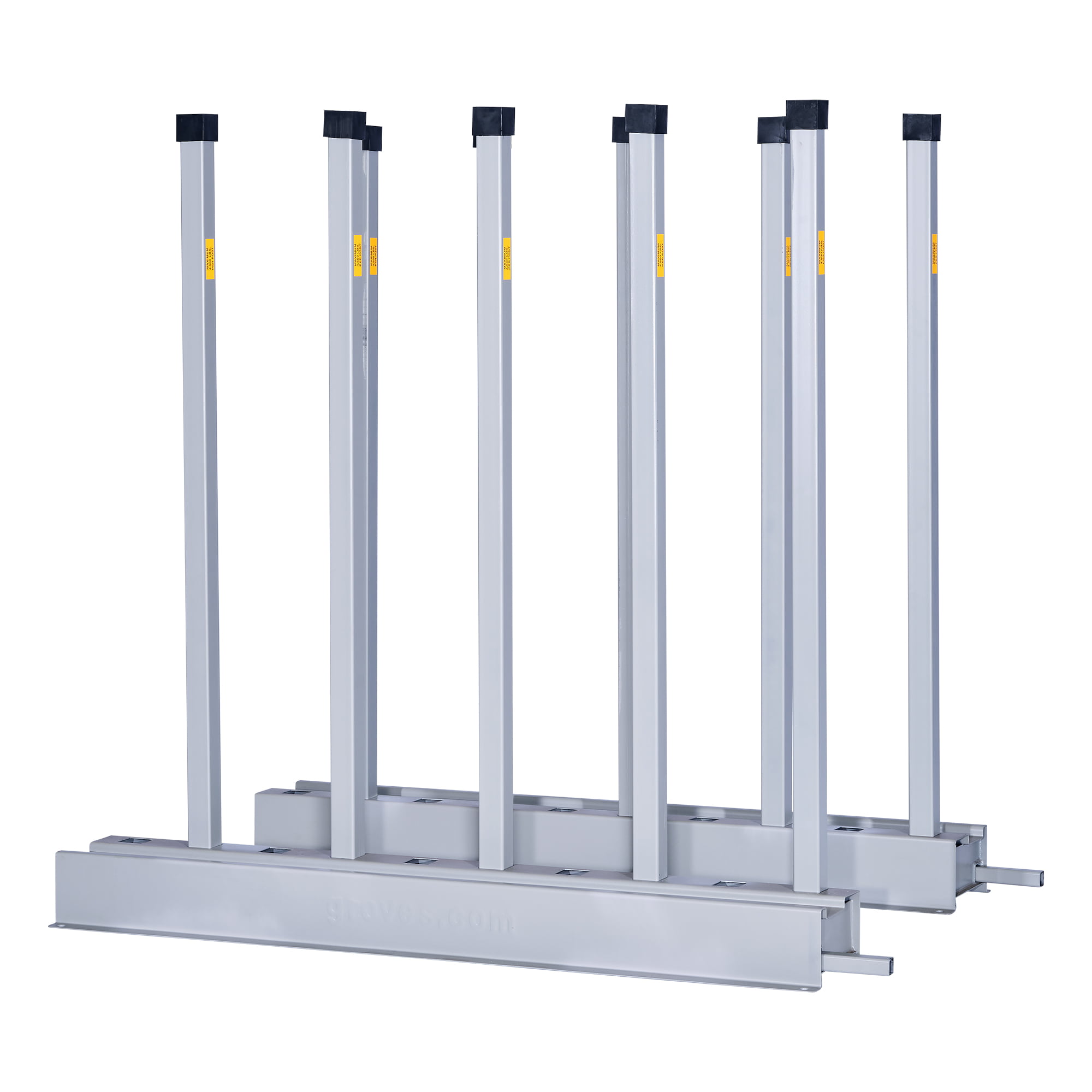

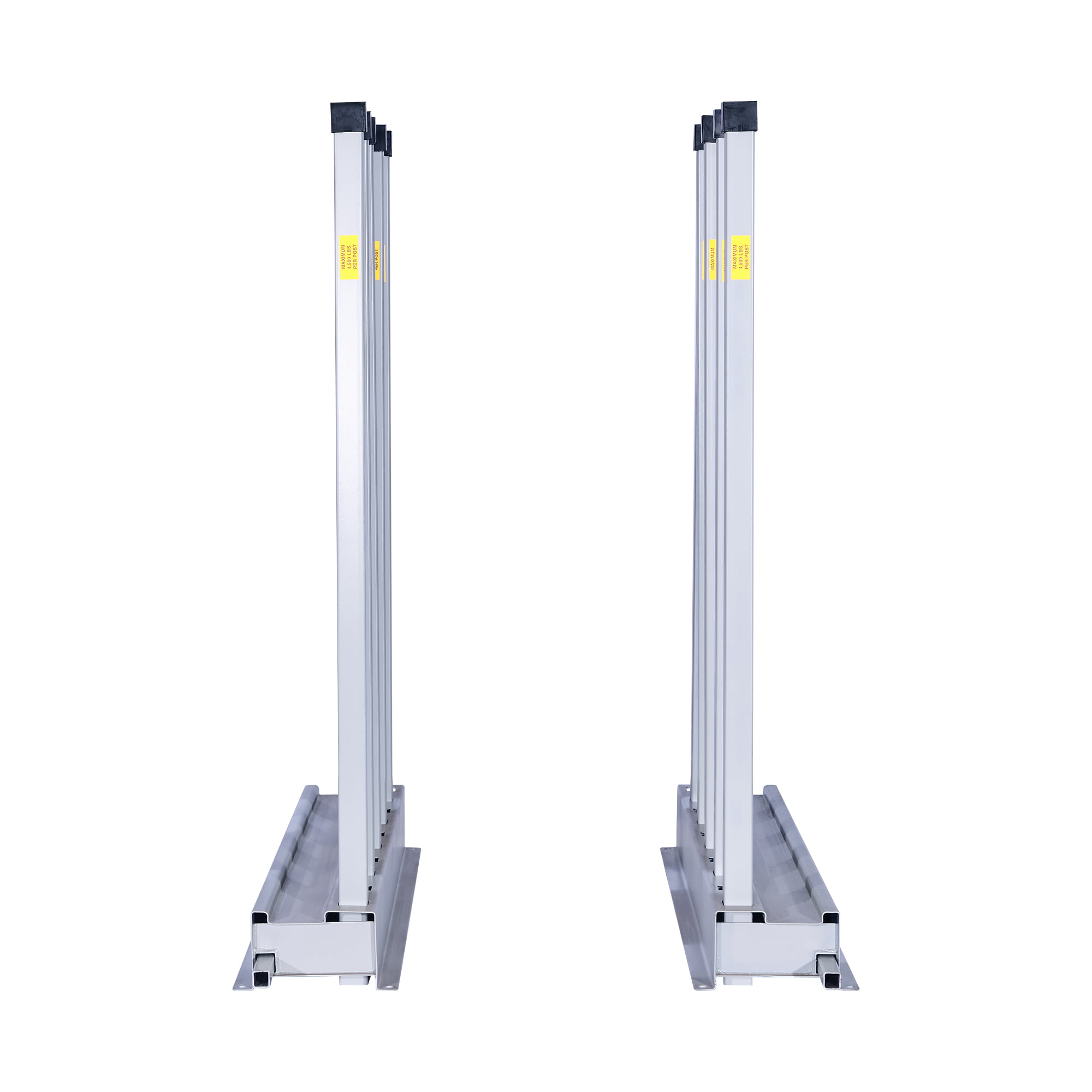

Bundle Rack

SKU: Bundle Rack Dimensions: Rail Size: 11.25” x 5.5” x 60”

Heavy-Duty powder coated finish.
Post height options available (40", 60" or 80")
Complete with 11” connector tube for butting rails together in a straight line for desired length
Rails built with 2” square holes spaced 4” apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1” up from the bottom
2” square tube posts and 2” square rubber post caps to separate bundles and slabs

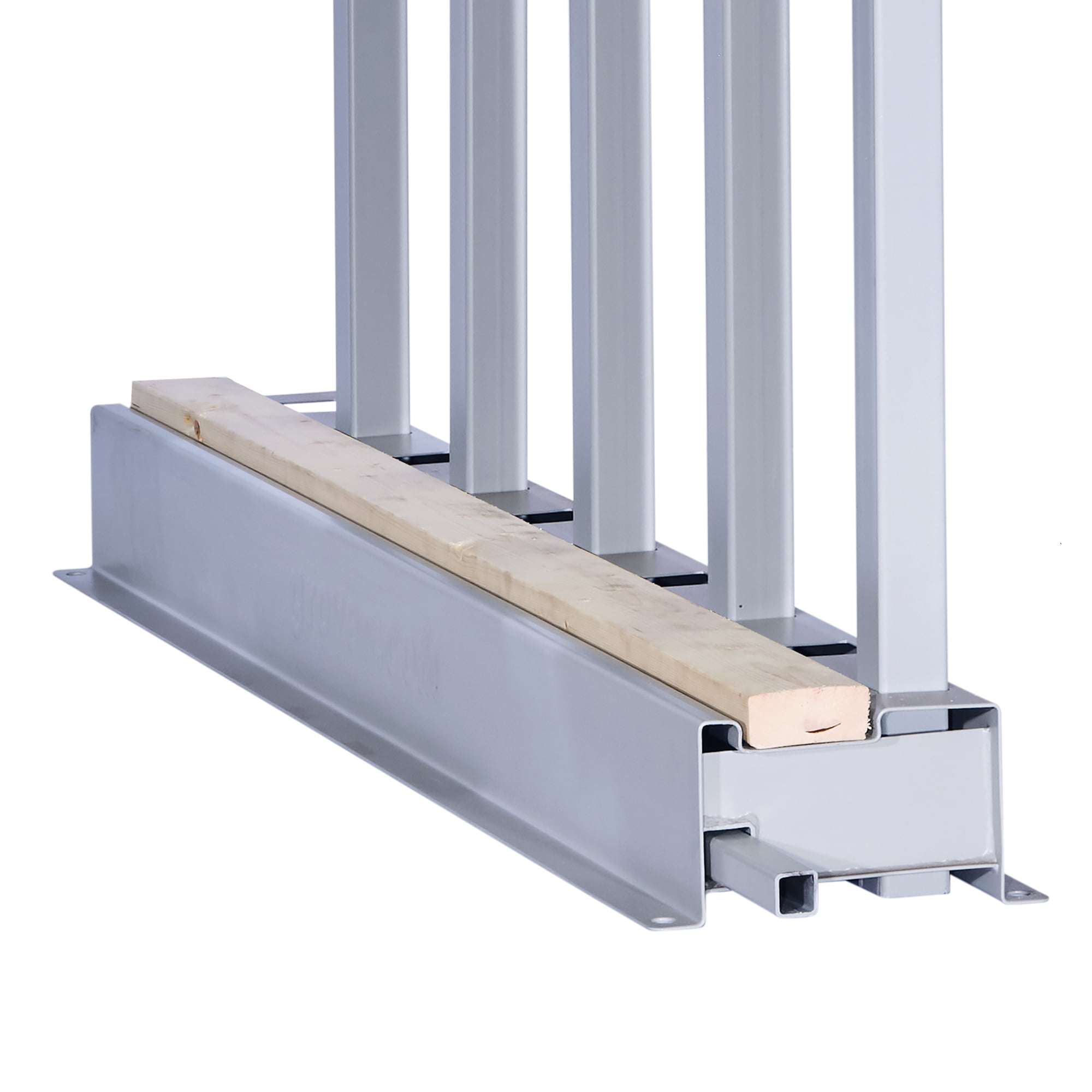

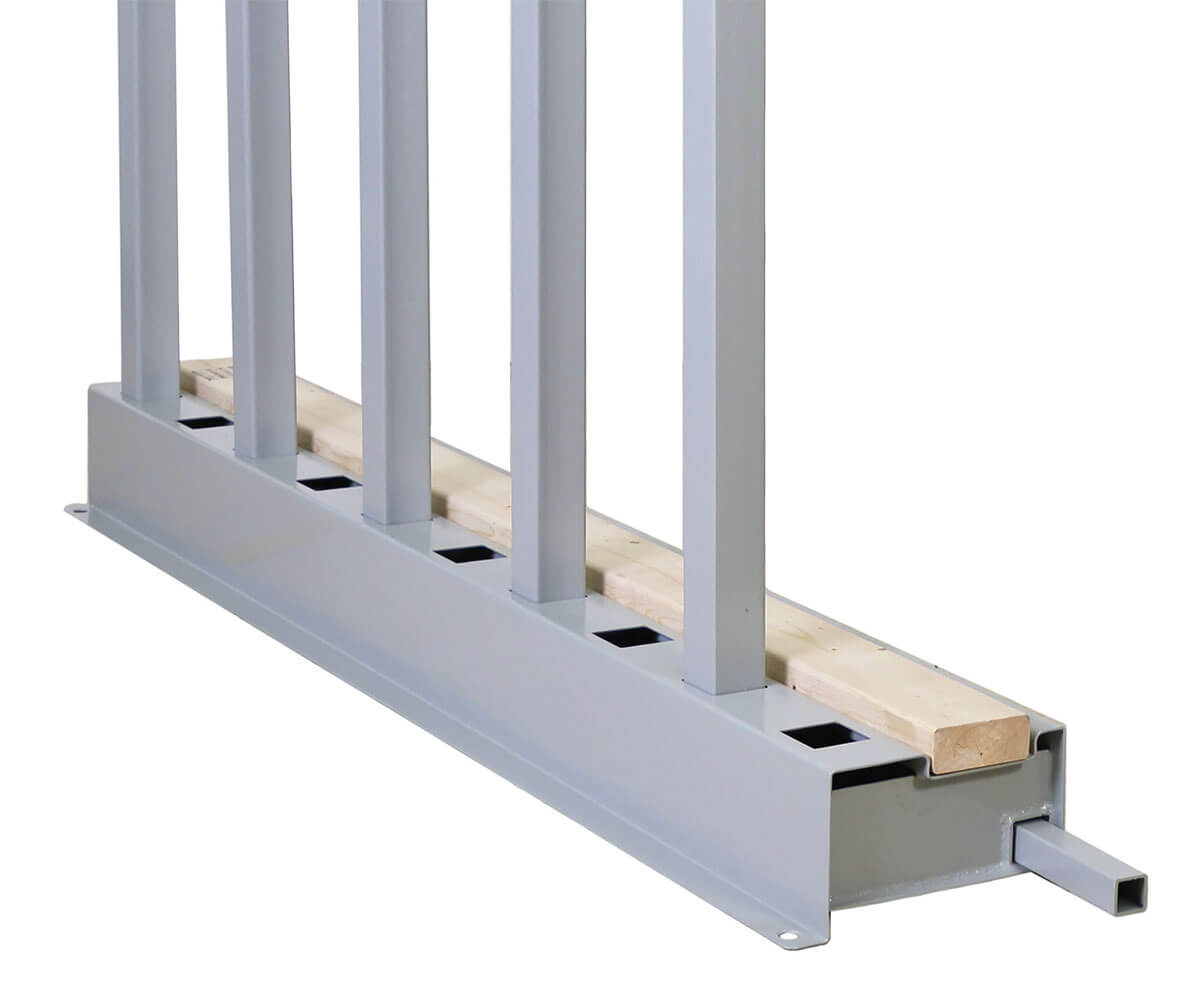

Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4’s not included)
Patent # 7143901

Add to Wishlist

Categories: Storage and Handling, Stone Tag: Post & Rail

Store bundles or slabs in your shop or warehouse with ease in this well designed, patented rack!

General Use & Safety Guidelines

Assembly Guide

SUGGESTED PACKAGES FOR BUNDLES OR SLABS USING 60” POSTS
Part No.	Length	Openings	Parts In Package	Weight lbs.	Price Each
4-W60	5’	4	2 BR-5, 10 SP-60	260	$733.00
9-W60	10’	9	4 BR-5, 20 SP-60	520	$1,466.00
19-W60	20’	19	8 BR-5, 40 SP-60	1,040	$2,932.00
49-W60	50’	49	20 BR-5, 100 SP-60	2,600	$7,330.00

SAFETY WARNING:

Maximum weight allowed per opening is 9,000 lbs. (4,500 lb. per post)

Minimum of 2-degree angle when dropping stone in between posts

Inspect posts each time used

NOTE: When assembled the overall height of the posts are 5.5” less then listed

(EXAMPLE: 60” post will be 54.5” above the top of the rail)

Request More Information

This field is hidden when viewing the form
Lead Source
Product Line Interest
Name*
First Last
Department / Organization
Title
Phone*
Email*
Ship To Address
ShipAdd1 ShipAdd2 ShipCity ShipState ShipZip
State*
Message
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

Click here to find a distributor

As consumer’s wants and needs evolve, so does the material handling industry. Regardless of how consumers and technology shape the industry; one thing is certain; safely handling and transporting will always be top priority. To promote safety and a positive customer experience, Groves’ material handling products were built with our customer in mind. We are committed to providing the highest quality products at competitive prices, while constantly looking for opportunities to better solve our customer’s needs.

Bundle Rack

SAFETY WARNING:

Maximum weight allowed per opening is 9,000 lbs. (4,500 lb. per post)

Minimum of 2-degree angle when dropping stone in between posts

Inspect posts each time used

NOTE: When assembled the overall height of the posts are 5.5” less then listed

(EXAMPLE: 60” post will be 54.5” above the top of the rail)

Request More Information

Click here to find a distributor

Categories

View Full Catalog

Product Wishlist’s

Browse

Reach Us

Bundle Rack

SAFETY WARNING:

Maximum weight allowed per opening is 9,000 lbs. (4,500 lb. per post)

Minimum of 2-degree angle when dropping stone in between posts

Inspect posts each time used

NOTE: When assembled the overall height of the posts are 5.5” less then listed

(EXAMPLE: 60” post will be 54.5” above the top of the rail)

Request More Information

Click here to find a distributor

Other Products

Heavy-Duty Shop Carts

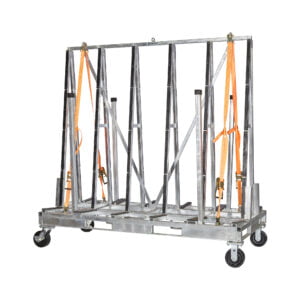

Transport Rack Caster Kits
