HDBR 2.5-90 Heavy-Duty Bundle Rack Long Outside Rail

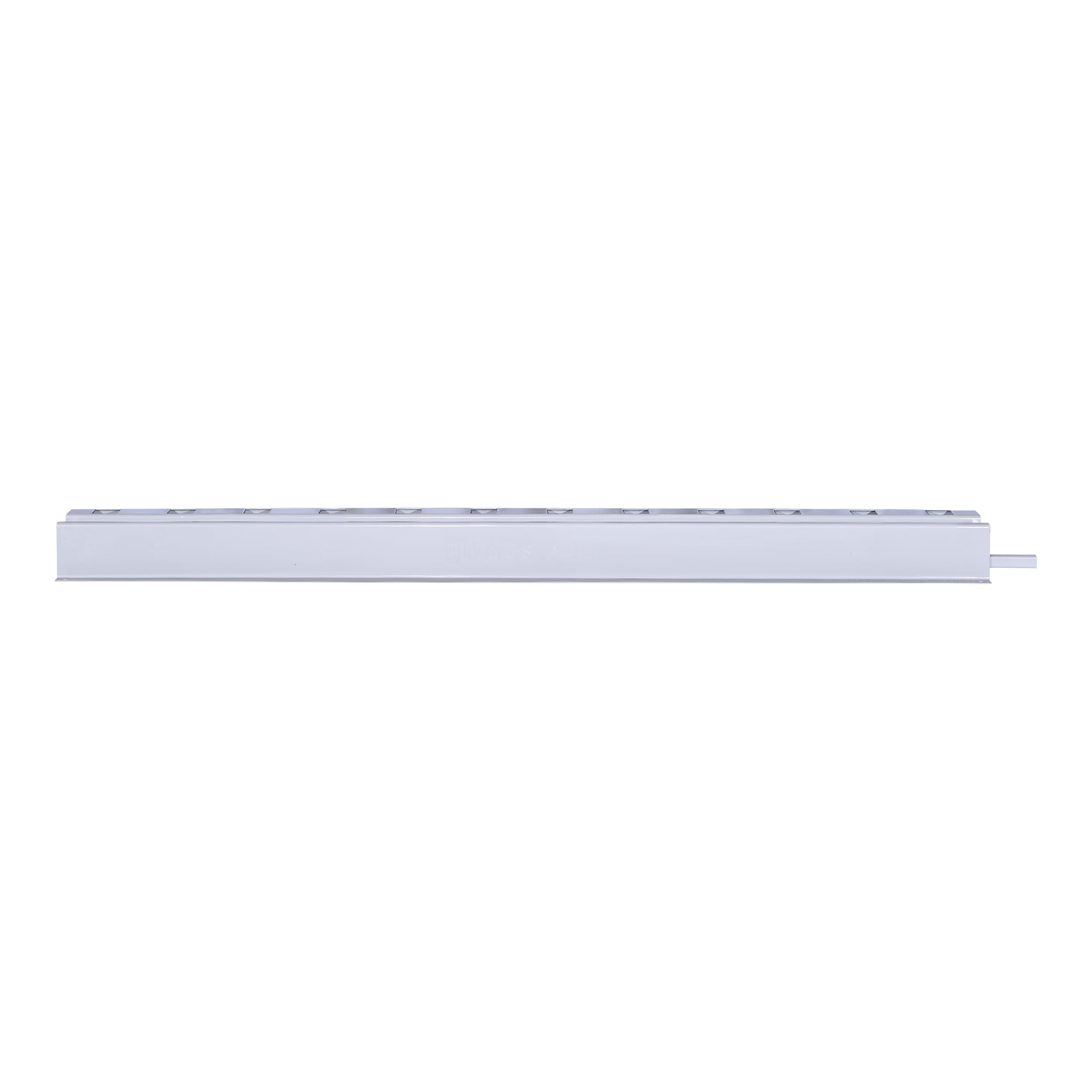

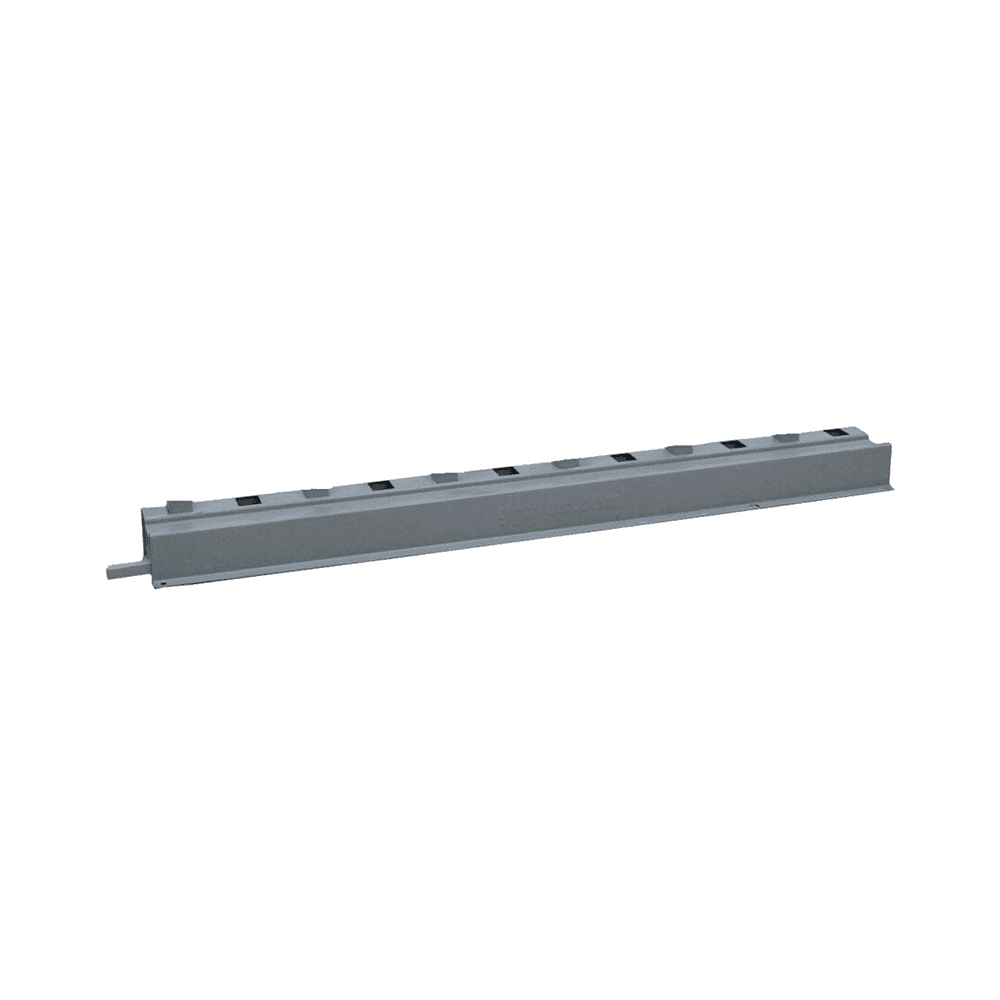

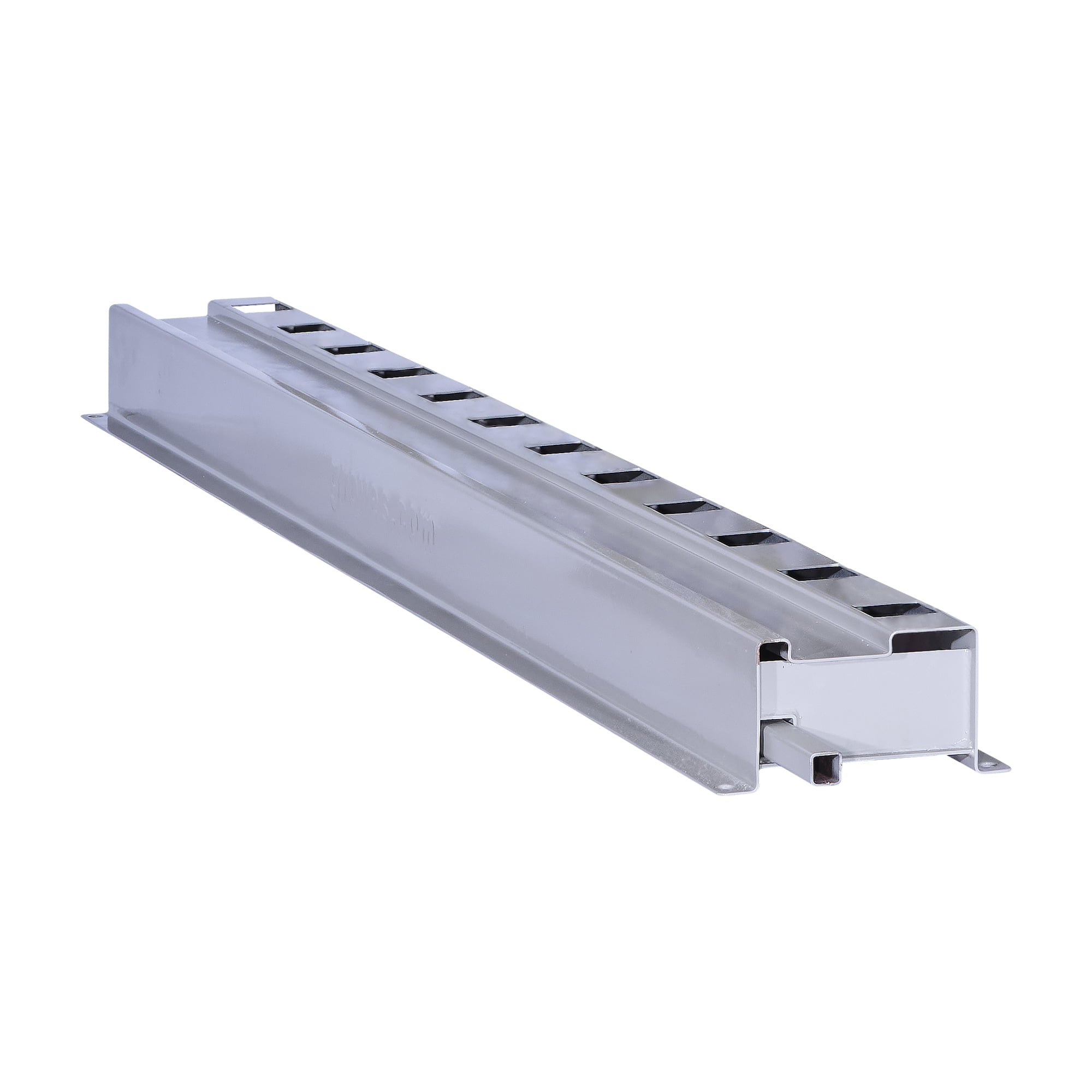

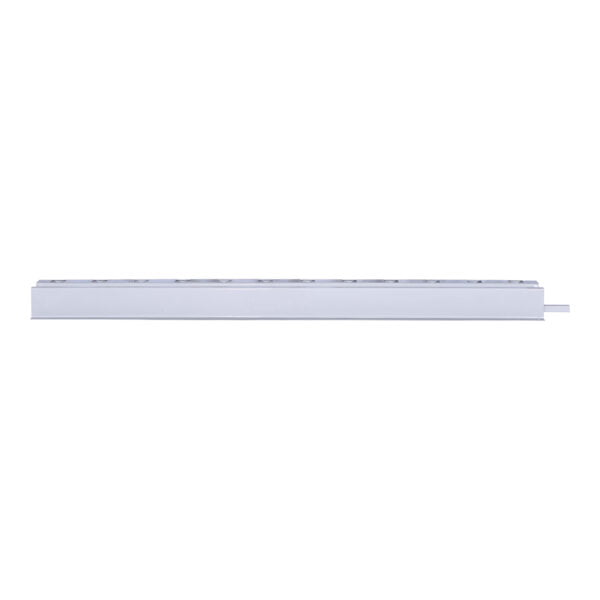

Outside Rail for 9,000 lb. Capacity Heavy Duty Bundle Rack Long – BR2.5-90

$352.00

SKU: HDBR 2.5-90 Dimensions: 11" wide x 5.5" high x 90" long butt together for desired length.

Outside rails are designed with slots to hold a 2x4. This helps protect the material being stored as well as the rail surface.
Outside rails have 2.5" square holes spaced 5" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
Rails shipped with 11" connector tube for butting rails together in a straight line.
Note: When assembled the overall usable height of the post is 5.5" less than listed.Example: A 72" post will be 66.5" above the top of the outside rail.
Patent # 7143901

Add to Wishlist

Categories: Storage and Handling, Stone Tag: Post & Rail

SAFETY WARNING:

Use .5″ holes located on bottom flange for securing rails to the floor.

MAXIMUM WEIGHT ALLOWED PER BUNDLE: 9,000 LBS. (4,500 LBS. PER POST)
